    120V AC Input Output Module

    SHIELD 120V AC Input/Output Module is a loop powered device which incorporates a monitored input circuit for connection to dry contacts, as well as a 4A rated dry contact relay output.

    Click here to download the catalogue

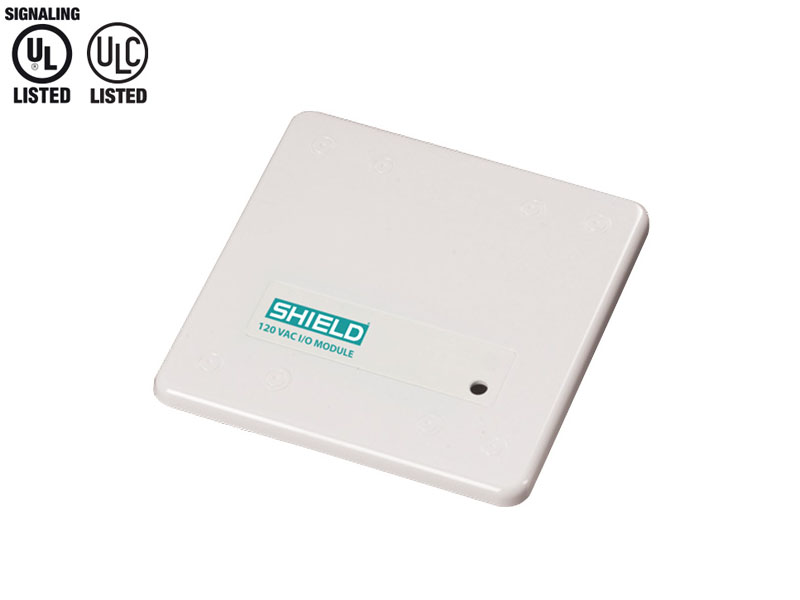

    SHIELD 120V AC Input/Output Module is a loop powered device which incorporates a monitored input circuit for connection to dry contacts, as well as a 4A rated dry contact relay output. It is mounted in a plastic facia plate for use with a 4″ square or 2 gang electrical back box.

    Click here to download the catalogue

    Features

    • Loop-powered
    • Visible LEDs
    • 4A rated dry contact

    Specification

    Type 120 V AC Input/Output Module
    Style Fascia Plate With Wiring Terminals
    Temperature Range 0°C to 49°C
    Wiring Size 24 AWG – 14 AWG
    Signal Line Circuit (SLC) Supervised Power Limited
    Operating Voltage 17 – 28 V DC
    20-28 V DC (UL listed)
    Modulation Voltage 5 – 9 V DC (peak to peak)
    Operating Current Supervisory Current at 17 V <0.95 mA
    Alarm Current at 17 V <2.80 mA
    Supervisory Current at 28 V <0.95 mA
    Alarm Current at 28 V <3 mA (LED on)
    Maximum Alarm Current <5 mA
    Functional States Analog Level (normal) 16
    Analog Level (alarm) 64
    Analog Level (trouble) 4
    Dimensions (L x W x D) 114 mm x 114 mm x 25 mm
