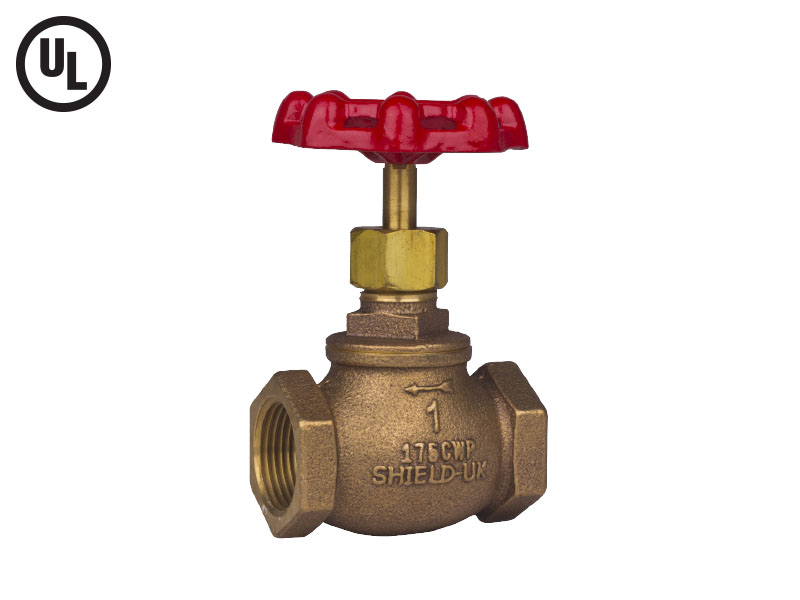

    BRONZE GLOBE VALVE, THREADED

    MODEL: SD-GV

    These UL Listed valves are manufactured in accordance with the Standard UL 258 Valves, Trim and Drain components. The globe valves are intended to be installed in accordance with the National Fire Protection Association Standards, NFPA 13, 14 and 15. The valve utilizes ASTM B584 C84400 cast bronze for body, ASTM B124 C37700 forged brass for bonnet, disc holder and packing nut, ASTM B271 C86700 brass alloy for the stem, the handwheel is made of ASTM A126 Gr. B cast iron. The valve is intended for use in the water piping of fire protection service in accordance with the Standard for the installation of Sprinkler System, NFPA 13, 14, 15.

    Rated pressure 175 psi, the leakage test pressure at both seat and body are 350 psi twice the rated pressure, hydrostatic test pressure 875 psi 5 times the rated pressure.

    MODEL: SD-GV

    These UL Listed valves are manufactured in accordance with the Standard UL 258 Valves, Trim and Drain components. The globe valves are intended to be installed in accordance with the National Fire Protection Association Standards, NFPA 13, 14 and 15. The valve utilizes ASTM B584 C84400 cast bronze for body, ASTM B124 C37700 forged brass for bonnet, disc holder and packing nut, ASTM B271 C86700 brass alloy for the stem, the handwheel is made of ASTM A126 Gr. B cast iron. The valve is intended for use in the water piping of fire protection service in accordance with the Standard for the installation of Sprinkler System, NFPA 13, 14, 15.

    Rated pressure 175 psi, the leakage test pressure at both seat and body are 350 psi twice the rated pressure, hydrostatic test pressure 875 psi 5 times the rated pressure.

    Features

    • Wall Thickness Comply to ANSI B16-15, Threads to ANSI B1.20-1.
