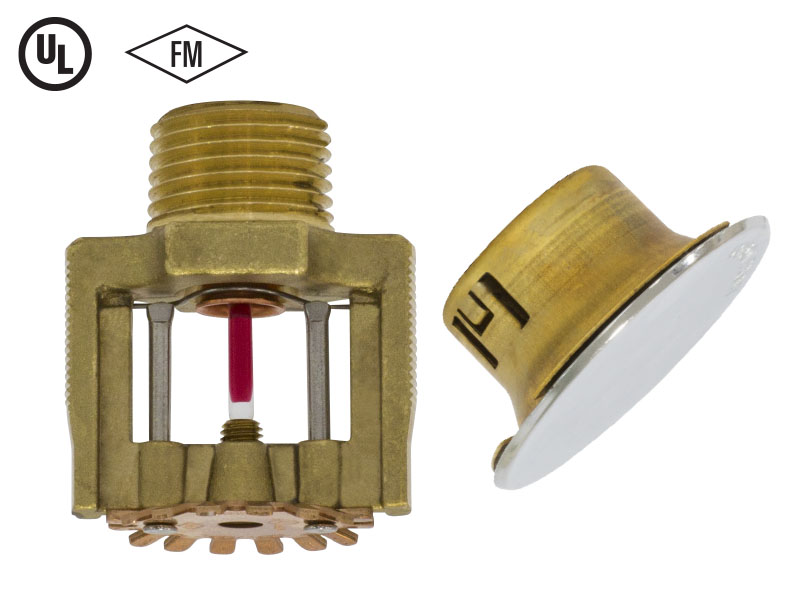

    CONCEALED SPRINKLER

    MODEL: SD1050, SD1055

    The SHIELD Sprinklers, SD1050, SD1055 (Glass Bulb Type) Standard and Quick Response Concealed Sprinkler, design incorporates state-of-the-art, heat responsive, frangible glass bulb design for prompt, precise operation. The forged frame is more streamlined and attractive than traditional sand cast frames.

    It is cast with a hex-shaped wrench boss to allow easy tightening from different angles. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The concealed pendent should be utilized with a concealed cover plate which provides up 6mm of adjustments. All sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.

    MODEL: SD1050, SD1055

    The SHIELD Sprinklers, SD1050, SD1055 (Glass Bulb Type) Standard and Quick Response Concealed Sprinkler, design incorporates state-of-the-art, heat responsive, frangible glass bulb design for prompt, precise operation. The forged frame is more streamlined and attractive than traditional sand cast frames.

    It is cast with a hex-shaped wrench boss to allow easy tightening from different angles. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The concealed pendent should be utilized with a concealed cover plate which provides up 6mm of adjustments. All sprinklers are manufactured using the time proven Belleville seal used exclusively by all major manufactures to ensure long life and safe operation.

    Specifications

    Sprinkler Identification Number Standard SD1050 (bulb 5mm), Quick Response SD1055 (bulb 3mm)
    Style Concealed Pendent
    Sprinkler
    Finish Sprinkler-Natural
    Cover Plate*-Natural/Chrome
    K Factor 5.6gpm/psi½. (80lpm/bar½)
    Response Time Index (RTI) Standard 50 (m.s)½
    Quick Response 30 (m.s)½
    Nominal Thread Size ½”NPT(15mm)
    Orifice Size 13mm
    Max. Working Pressure 175PSI(1200kPa)
    Factory Hydrostatic Test 100%@500PSI(3450 kPa)
    Min. Operation Pressure 7 PSI(48 kPa)
