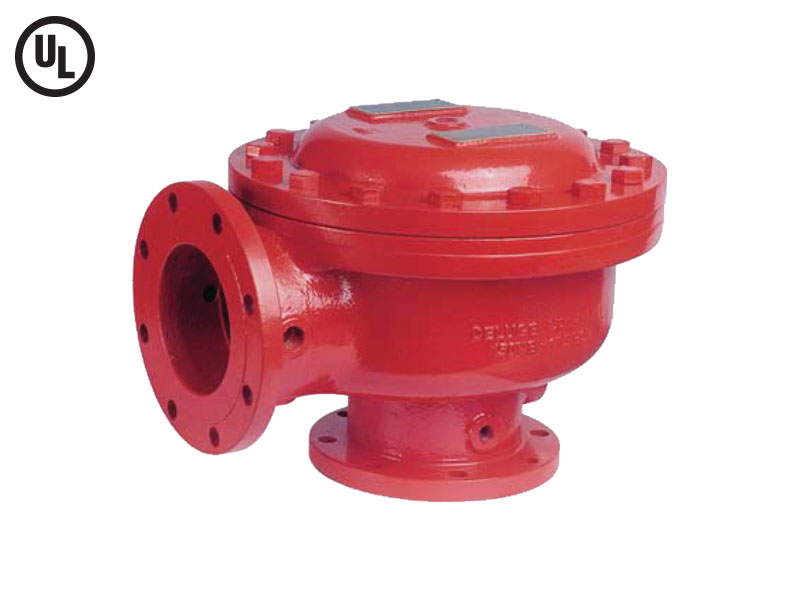

    SD-DVA

    Deluge Valve is known as a system control valve in a deluge system, used for fast application of water in a spray system. Deluge valve protects areas such as power transformer installation, storage tank, conveyor protection and other industrial application etc. With the addition of foaming agent deluge valve can be used to protect aircraft hangar and inflammable liquid fire.

    Deluge Valve is known as a system control valve in a deluge system, used for fast application of water in a spray system. Deluge valve protects areas such as power transformer installation, storage tank, conveyor protection and other industrial application etc. With the addition of foaming agent deluge valve can be used to protect aircraft hangar and inflammable liquid fire.

    Technical Data

    Nominal Size 200, 150, 100, 80 & 50NB
    Material Cast Iron
    Maximum Working Pressure 12 Bar (175 Psi)
    Threaded Opening BSPT
    Testing Pressure 350 PSI
    Mounting 90° pattern inlet to outlet vertical mounting
    Factory Hydrostatic Test Pressure 25 Kg./sq.cm. (350 Psi)
    Flange Connection ANSI B 16.1 FF # 125
    (Flange drilling matching to ANSI B 16.5 # 150)
    Trim Galvanized Steel with Brass Valves
    Wet Pilot Sprinkler Height Limitation As per graph in the catalogue
    Net Weight without Trim 200NB – 214 Kg
    150NB – 131 Kg
    100NB – 77 Kg
    80NB – 50 Kg
    50NB – 47 Kg
    Finish Red RAL 3000
    Ordering Information Specify:
    1) Size of valve

    2) Trim type – Dry PilotWet Pilot Electric Release Test & Alarm
