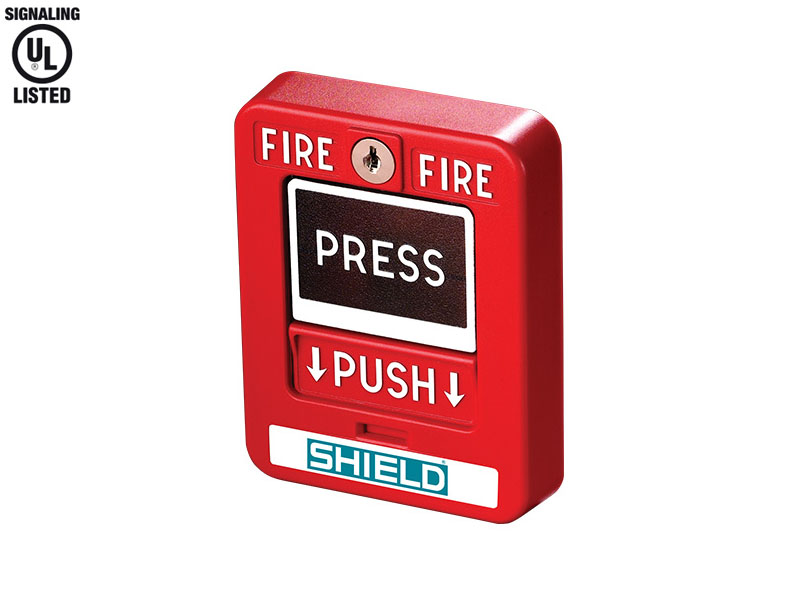

    Dual Action Pull Station

    The Addressable Manual Pull Station is dual action and features translucent plastic at the center, allowing visibility of an internal LED that indicates alarm condition and polling status.

    The Addressable Manual Pull Station is dual action and features translucent plastic at the center, allowing visibility of an internal LED that indicates alarm condition and polling status. The unit is addressable using a DIP switch protected within the pull station. The Manual Pull Station may be flush mounted on a single gang work box or use an optional back cover.

    Features

    • Control Panel Compatibility.
    • Key lock.
    • Easily resettable.
    • LED visible even when Pull Station is closed.
    • Redundancy to false alarm.

    Specification

    Operating Voltage 17 – 28 V DC
    20 – 28 V DC (UL Listed)
    Current Consumption at 24 V Normal Standby 200μA
    Operated 3.6 mA + Quiescent
    IP Rating 25
    Dimensions (W x H x D) mm Pull Station 108 x 140x 28
    Back Box 108 x 140x 45
    Weight Pull Station 200 g
    Back Box 326 g

    Resources

    Download Data Sheet
