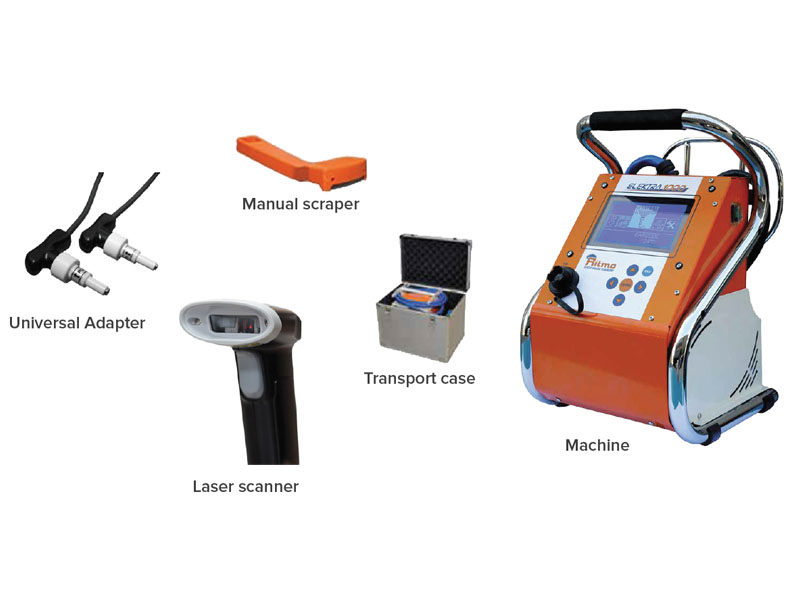

SHIELD provides wide range of Electro-Fusion Machines which includes mainly:
| Working Range | 500 – 200 mm to 1600 – 20 mm | |
|---|---|---|
| Materials | HDPE, PP, PP-R | |
| Max. Absorbed Power | 3100 W (110 V) 3500 W (230 V) |
|
| Connections | USB for external memory and ESC-POS |
|
| Max. Output Current | 100 A (110 V) 120 A (230 V) |
|
| Protection Degree | IP 54 | |
| Memory | 4000 Reports | |
| Welding Hose Length | 3m | |
| Welding Output Voltage | 8 – 48 V | |
| Power Supply | 110 V Single Phase 60/50 Hz 230 V Single Phase 60/50 Hz |
|
| 60% Duty Cycle Output 2 | 70 A – 90 A | |
| Operating Mode | Bar-code Manual (Numerical code or tension/time) |
|
| Outside Temperature Range | 10°C – 50°C | |
| T°Reading Probe-precision | ±1°C | |
| Dimensions Transport Case | ± 410°1 x 290 x 485 mm | |
| Weight Standard Composition | 18 Kg – 20 Kg | |
NOTE: Please contact us for more information*
