    Louver Doors and Panels

    Louvers permit free air passage, controlling the volume of air by their Size or Design, thereby enabling temperature exchange between the External and Internal Area. They diffuse or control direction of air by blade design.

    Click here to download the catalogue

    Door Type

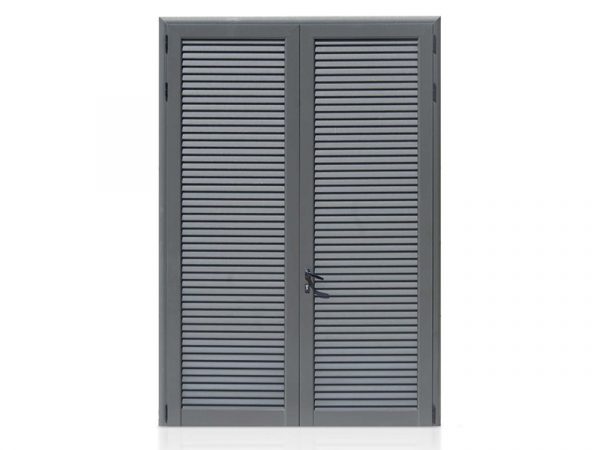

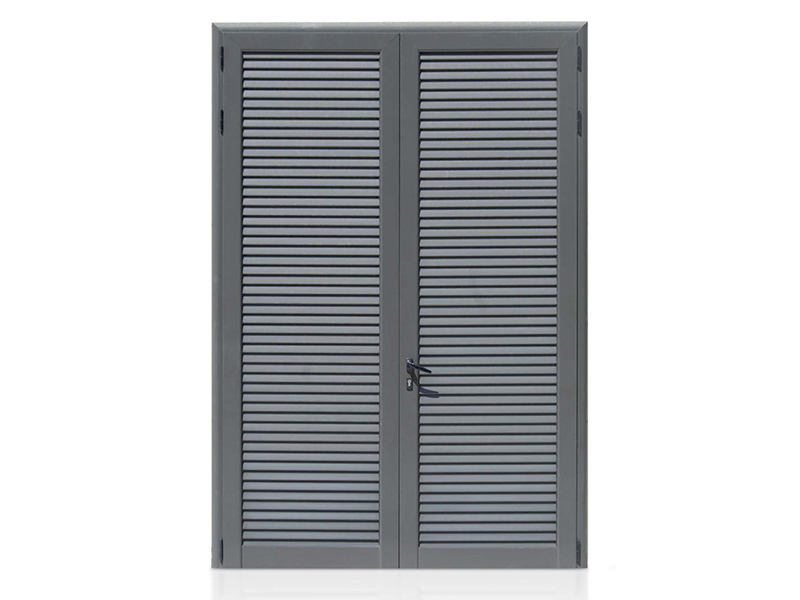

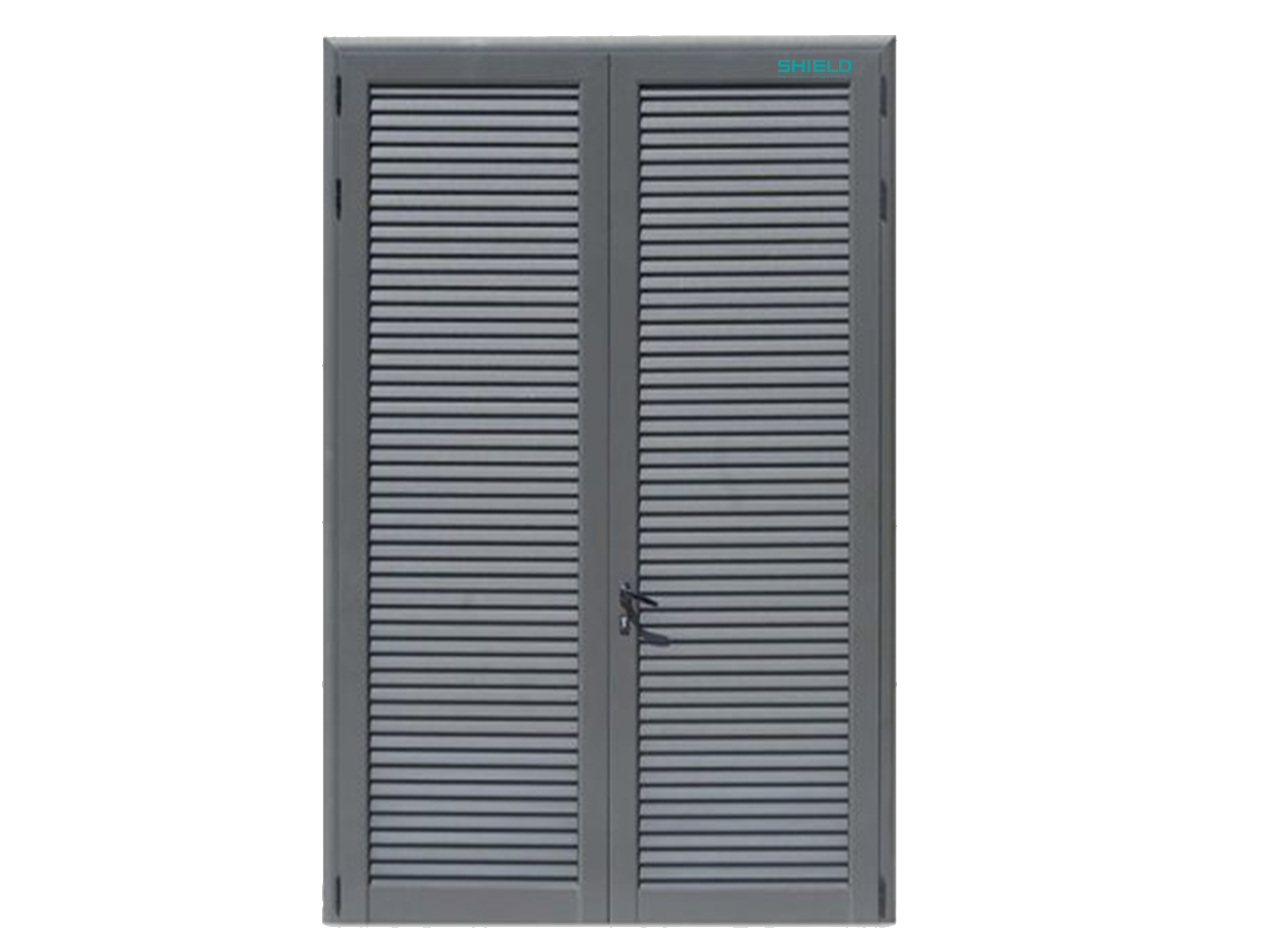

    Non Fire Rated Inverted Z Type Sightproof Louvered Door

    Application

    • At areas where flow of maximum free air flow with minimum differential static pressure is required.
    • At areas where light transmission and vision should be avoided with minimal free air flow requirements

    Areas of Application

    • Transformer Room
    • Electrical / ELV Room
    • Generator Rooms
    • HVAC / Compressor / Pump Room
    • Substation
    • Plant Rooms and Warehouses

    Techinical Specification

    MATERIAL

    • Stainless Steel
    • Galvalume Steel
    • Galvanized Steel
    • Aluminum

    THICKNESS
    Stile and Rail Thickness – (1.2 to 2.0) mm
    Louver Blade Thickness – (1.2 to 1.5) mm
    Frame Thickness – (1.5 to 2.0) mm

    FRAME PROFILE
    Single / Double Rabbet

    DOOR TYPE
    Swinging (or) Sliding

    FINISHING OPTIONS
    Any Powder Coated RAL Colour

    IRONMONGERY OPTIONS
    Multiple Options and Combinations Available

    Standard Size Selection Chart

    Single Leaf Door Double Leaf Door
    3’ x 7’ 6’ x 7’
    3’ x 8’ 7’ x 7’
    4’ x 7’ 7’ x 8’
    4’ x 8’ 8’ x 8’
    4’ x 10’ 8’ x 10’
    — 10‘x 10’
    Minimum Stile / Rail Width Standard Frame Jamb Depth
    150mm 150mm
