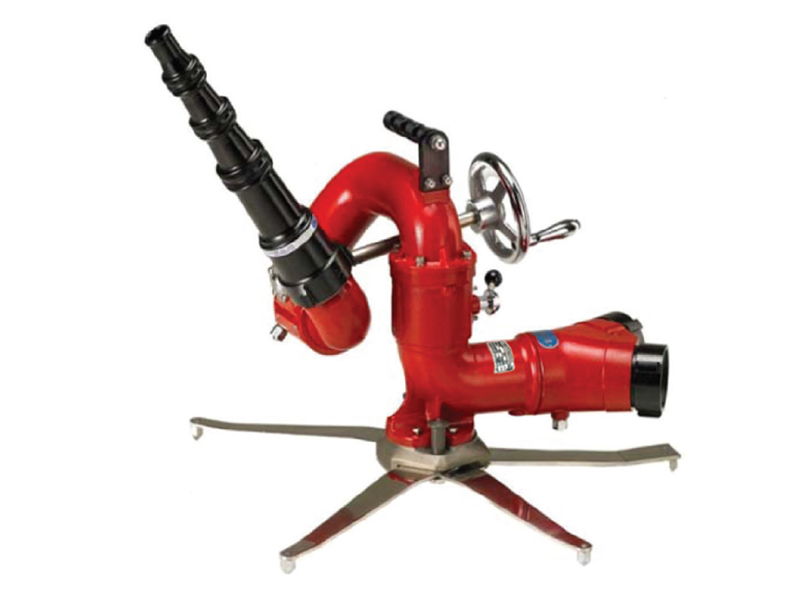

MODEL: SD-21A
Portable Monitor is used in the place where operator is difficult to access like hazardous storage, outdoor oil tank, gas storage tank, chemical factory. Also equipped in the fire truck to deploy during fire fighting operation at the hard to access area. Monitor is light weight for easy transportation to required area. Foldable type legs can be folded by one simple touch for quick transportation.
Vertical movement is 90° (85° above and 5° below horizontal) and horizontal movement is a full, continuous 360 (hand wheel remains stationary), grease-zerk for easy lubrication.
For total flooding applications, on the outdoor hydrant, fire trucks, mines, tunnels and etc.
| Inlet | 2½” NH female swivel |
|---|---|
| Outlet | 2½” NH male |
| Material | Aluminum alloy (ASTM 355.0) |
| Monitor Elevation | 135° vertical movement Vertical movement controlled by Handwheel |
| Monitor Rotation | Horizontal movement 360° with positive twist locking mechanism |
| Net Weight | 20 Kg approx. |
