Features

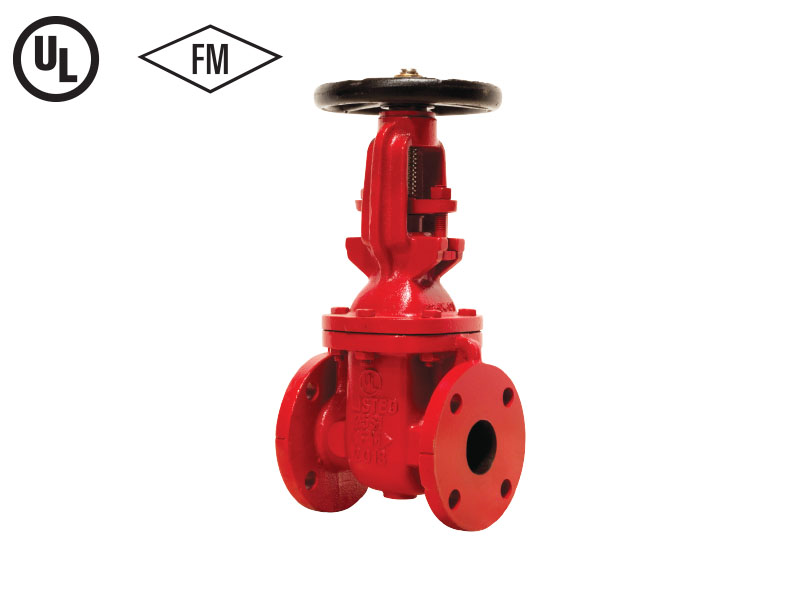

MODEL: SD-OSY175GV

• Outside screw and yoke
• Iron body. Bronze mounted. Solid wedge
• Flanged ends to ANSI B16.1 Class 125
• Working pressure: 175 psi (non-shock cold water pressure)
• Conform to MSS SP-70
• Pregrooved stem for supervisory switch

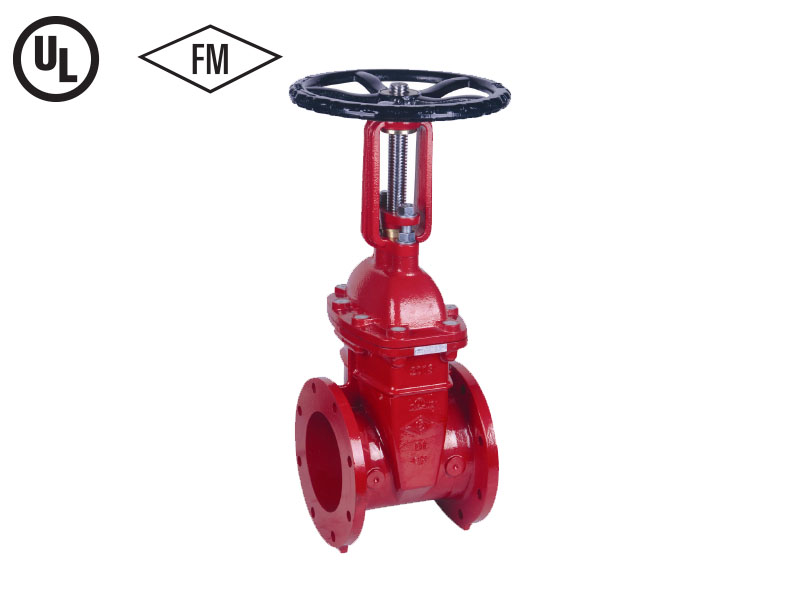

MODEL: SD-OSY200FF-D, SD-OSY250FF-D, SD-OSY300FF-D

• Working pressure: 200 psi, 250 psi, 300 psi
• Connection ends: Flange to ANSI B16.1 Class 125
• Temperature range: 0ºC to 80ºC
• Coating: Fusion bonded epoxy coating internally and externally in accordance with ANSI/AWWA C550

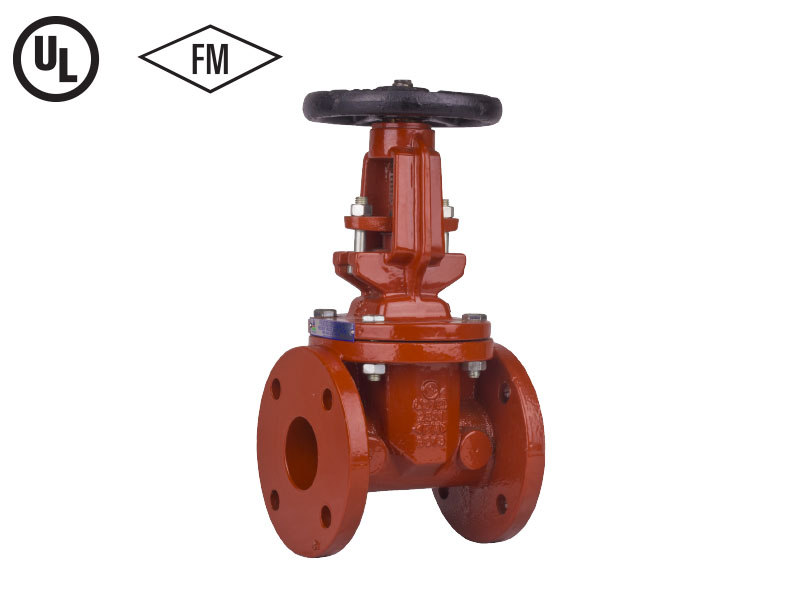

MODEL: SD-OSY250GV-D

• Valve complies with AWWA C515
• Working Pressure 250 psi. (Cold water pressure Max. temp. 63ºC)
• Flanged Ends to ANSI B16.1 Class 125
• Pre-grooved stem for supervisory switch
• Epoxy coated interior / exterior to AWWA C550

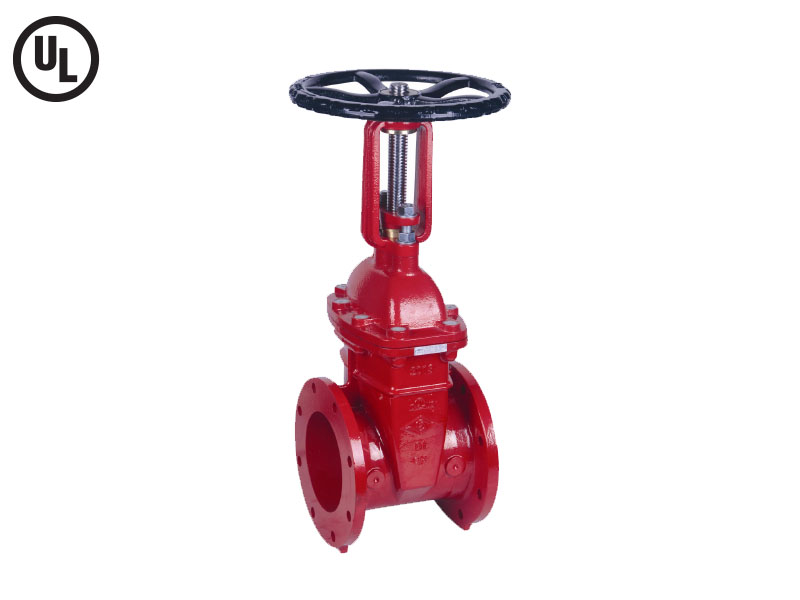

MODEL: SD-OSY175FF-D1

• Connection Ends: Flange to ANSI B16.1 CL 125
• Working Pressure 175 psi available upon request.
• Temperature Range: 0°C – 100°C
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
