Pipe Clamp with Lining

Click here to download the catalogue

SD-GE-RLC

Features

Material	Mild Steel & EPDM Rubber
Finishing	Electro galvanized as per ASTM B633 Standards.

Function

Designed for Horizontal, vertical and suspended installations.
Suitable for Steel, copper and PVC pipes.
Welded Nut M8/M10 with option of M10/M12.
Connection thread with M8/M10 dual-tapped boss.
Side Screw: 6 x 20 – Phillip head with vicer.
High rigidity due to reinforcing rib.
With highly elastic vibration control lining, vibration control tested.

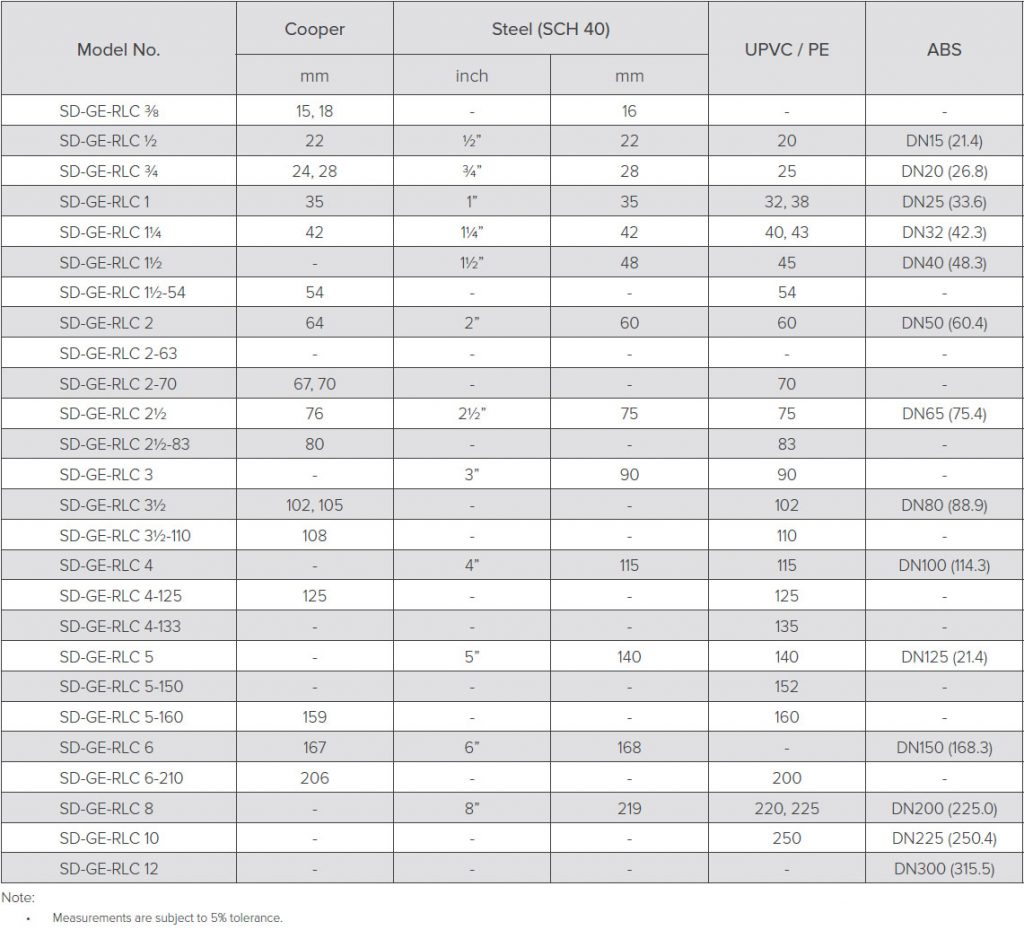

SELECTION OF LINED PIPE HANGERS FOR DIFFERENT TYPES OF PIPES
