Features and Benefits

• Combined Test & Drain Valve with grooved/threaded connection to the manifold.
• Complies with UL requirements for Body and seat leakage testing.

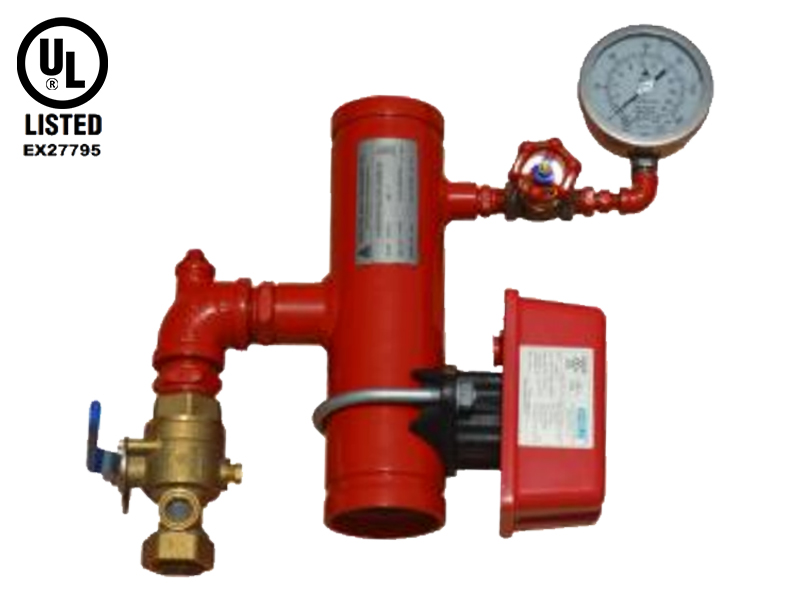

• Shield Riser manifold assembly is UL listed which includes Shield UL listed components such as Pressure gauge, Water flow detector, Globe valve, Test and Drain Valve, Watts Pressure relief valve, Reducing tee, Schedule 40 Pipe and Easy flex Flexible hose connection.
• Optional pressure release attachment.
• Pre-assembled and pressure tested.
• Pressure rated up to 175 Psi.
• It can be installed in both horizontal and vertical orientation.
• Flow Detector to ascertain whether or not there is a flow in the riser pipe to the fire sprinkler system and to relay this information where needed, as to fire departments.
• Time saved in buying and assembling the individual pieces.
• Complete riser kits are compact and lightweight, allowing for easier installation.
• Since they’re assembled as one piece it’s easier to be consistent and code-compliant in facilities that require more than one riser manifold.

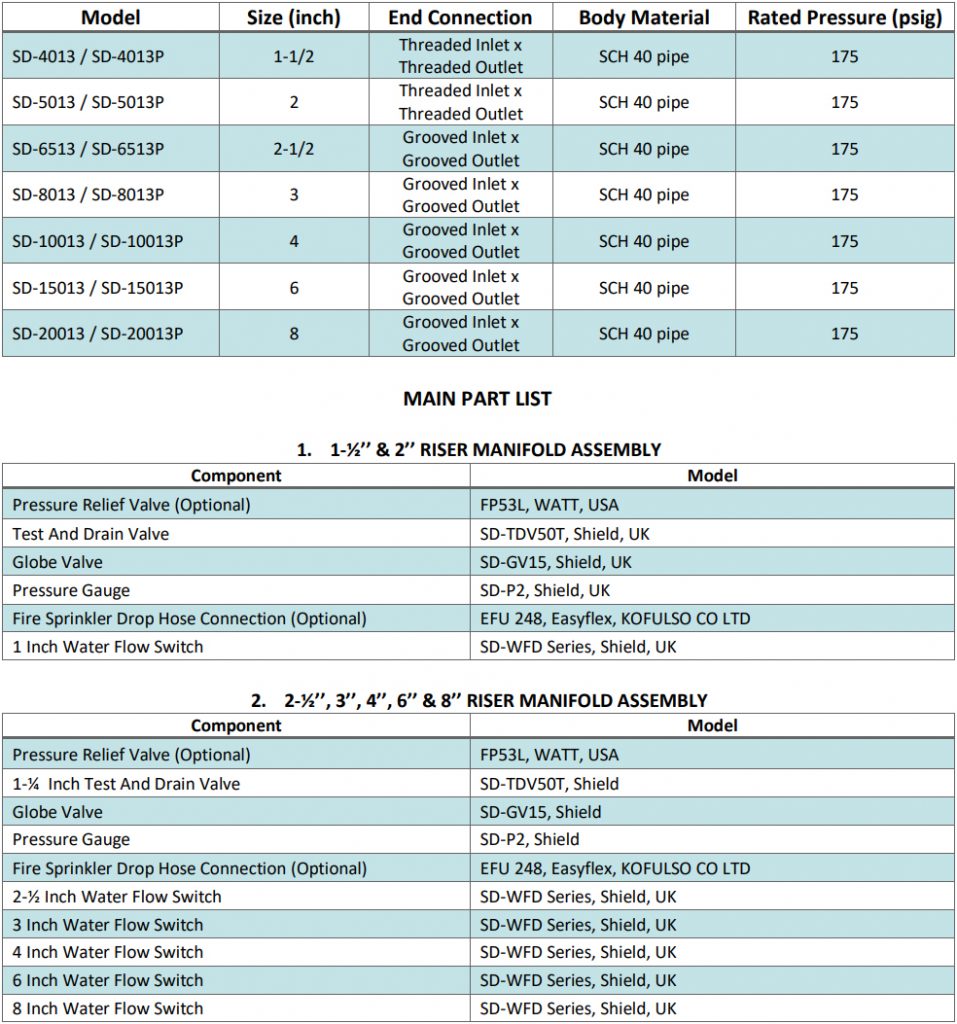

• Full range of connection sizes (1½” -8’’).
• Multiple connection types – Threaded Inlet x Threaded Outlet & Grooved Inlet x Grooved Outlet.
• This configuration eliminates the need to drain the system before installing the relief valve, while a built-in test port allows hydrostatic testing without draining the system.
