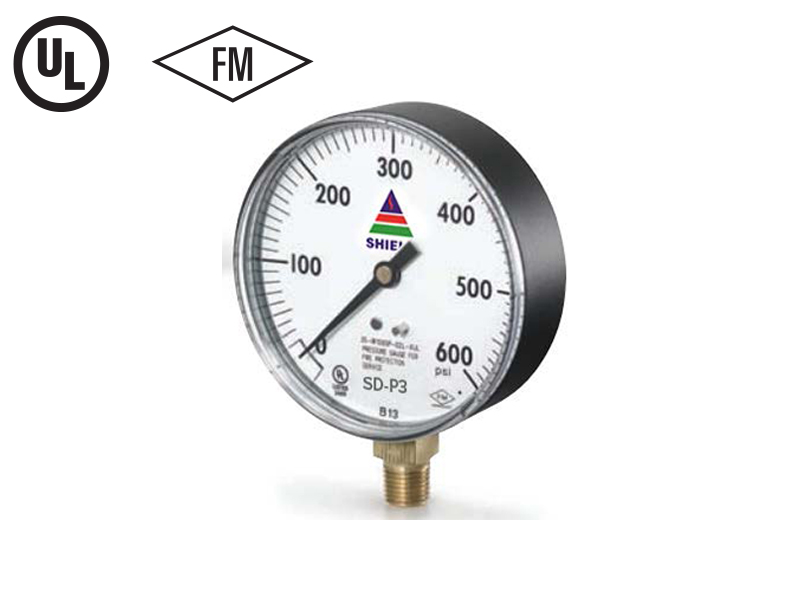

    SD-P3

    Shield fire protection sprinkler gauges are Underwriters Laboratory listed and Factory Mutual approved for fire protection sprinkler service. The case material on Type 1005P, XUL gauges is ABS. The 0-300 psi pressure range is used on “wet” systems where water is available to the sprinkler heads. The 0-600 psi gauge is available for systems requiring higher pressures.

    Due to global demands for fire protection sprinkler guages, Shield offers UL listed, triple scale (bar, kPa, psi) dial guages. The PowerFlex™ movement with polyester segment is designed to provide unequalled shock and vibration resistance resulting in superior performance and extended gauge life. True Zero™ indication, a standard feature on these gauges, reduces the potential risk of installing a damaged gauge on your equipment.

    Shield fire protection sprinkler gauges are Underwriters Laboratory listed and Factory Mutual approved for fire protection sprinkler service. The case material on Type 1005P, XUL gauges is ABS. The 0-300 psi pressure range is used on “wet” systems where water is available to the sprinkler heads. The 0-600 psi gauge is available for systems requiring higher pressures.

    Due to global demands for fire protection sprinkler guages, Shield offers UL listed, triple scale (bar, kPa, psi) dial guages. The PowerFlex™ movement with polyester segment is designed to provide unequalled shock and vibration resistance resulting in superior performance and extended gauge life. True Zero™ indication, a standard feature on these gauges, reduces the potential risk of installing a damaged gauge on your equipment.

    Specifications

    Model SD-P3 (0-600 psi)
    Type W1005P-02L-X UL
    Dial Size 90 MM (3.5”)
    Connection ¼” NPT lower
    Range Single, dual or triple scale
    0-300 psi (water)
    0-600 psi (water/air)
    Burdon Tube “C” Shaped Bronze
    Dial Type Black figures on white back-ground
    Case ABS (Polycarbonate blend)
    Window Polycarbonate, push-in
    Accuracy ASME B 40.100
    Grade B (± 3-2-3% of span)
    Ring None
    Pointer Black, aluminium
    Movement Power Flex with polyester segment
    Socket Brass
    Restrictor None
    Operating Temperature –40°F to 150°F; –40°C to 65°C

    *UL 393 Listed, and FM approved. Equivalent (Single or dual scale) metric scales are available

    Features

    • Underwriters Laboratory listed and Factory Mutual approved.
    • Corrrosion-resistant ABS case.
    • Heat-resistant polycarbonate push-in window.
    • True Zero™ indication, a unique safety feature.

    OPTIONAL FEATURES

    • Customized Dial
    • Black Rubber Gauge Boot

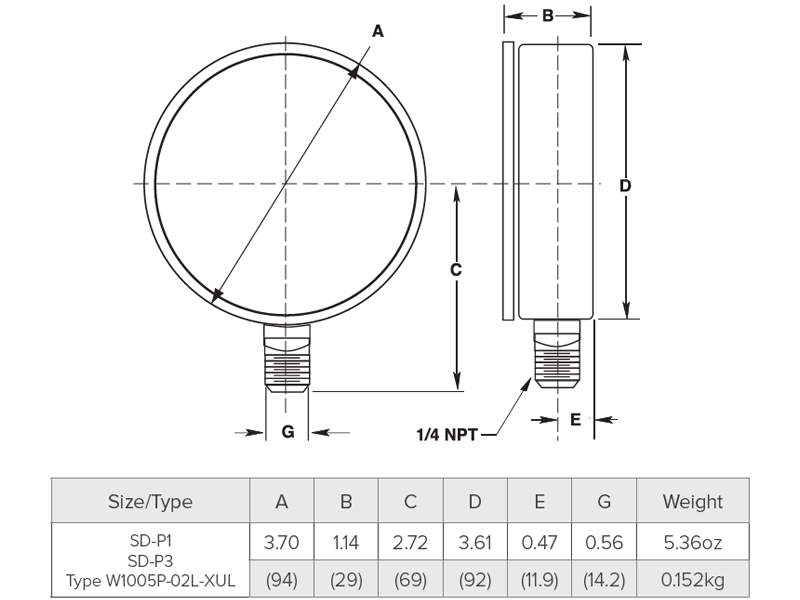

    Dimension
