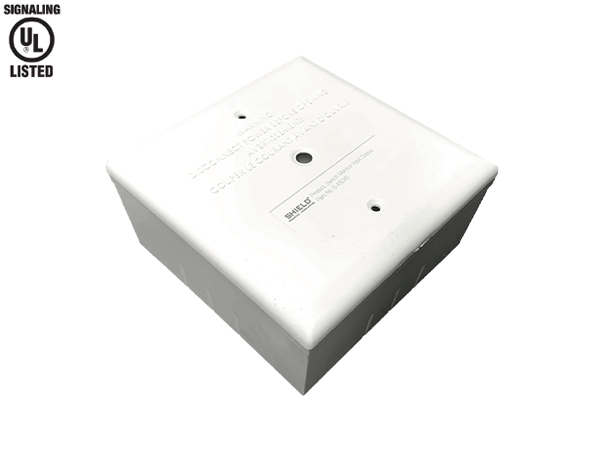

The Input/Output Module is a loop-powered device which incorporates a monitored input circuit for connection to
remote switches. It also has a 240 V rated volt-free relay output
• Built-in isolator.
• Visible LEDs.
• Loop Powered.
• Ground fault detection.
• Improved design for ease of wiring.
Modulation Voltage: 5 V – 9 V peak to peak
Switch-on Surge Current: 900 µA
Alarm/Operated Current, LED ON: 1.6 mA per LED
Maximum Loop Current: 1A
Supply Voltage: 17 V to 28 V DC
Supervisory Current: 500 µA
Dimensions: 4.9”W x 4.9”H x 1.175” D
Product Operating Temperature: 32°F to 120°F
Humidity: 10% to 93% RH (no condensation or icing)
Wire Size: 12-24 AWG
 |
